12M33 900kw - 1200kw Diesel Engine Generator 1125kva - 1500kva Diesel Backup Generator

    Buy cheap 12M33 900kw - 1200kw Diesel Engine Generator 1125kva - 1500kva Diesel Backup Generator from wholesalers

    Buy cheap 12M33 900kw - 1200kw Diesel Engine Generator 1125kva - 1500kva Diesel Backup Generator from wholesalers
    • Buy cheap 12M33 900kw - 1200kw Diesel Engine Generator 1125kva - 1500kva Diesel Backup Generator from wholesalers
    • Buy cheap 12M33 900kw - 1200kw Diesel Engine Generator 1125kva - 1500kva Diesel Backup Generator from wholesalers
    • Buy cheap 12M33 900kw - 1200kw Diesel Engine Generator 1125kva - 1500kva Diesel Backup Generator from wholesalers
    • Buy cheap 12M33 900kw - 1200kw Diesel Engine Generator 1125kva - 1500kva Diesel Backup Generator from wholesalers

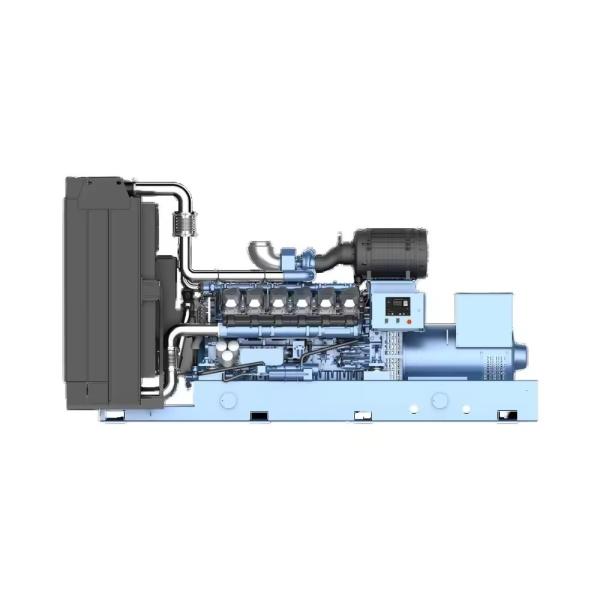

    12M33 900kw - 1200kw Diesel Engine Generator 1125kva - 1500kva Diesel Backup Generator

    Ask Lasest Price
    Brand Name : JIWEI
    Model Number : 12M33
    Price : Negotiable
    Certification : CE
    Payment Terms : T/T
    • Product Details
    • Company Profile

    12M33 900kw - 1200kw Diesel Engine Generator 1125kva - 1500kva Diesel Backup Generator

    900kw-1200kw 1125kva-1500kva Weichai Engine Diesel Generator Set
    Overview

    Product characteristics


    ● Excellent performance: wide range of uses, stable and reliable performance, high cost performance.

    High efficiency and energy saving: High efficiency fuel injection technology and advanced turbocharging mechanism, high combustion efficiency.

    ● Environmental protection and low noise: in line with international environmental standards, low emission level, using noise mitigation technology.

    ● Advanced design: integrated crankshaft box structure and modular design technology, light weight and small volume.

    ● Easy maintenance: compact structure, easy operation, flexible maintenance, high degree of automation.


    Application field


    ● Industrial field: suitable for manufacturing, metallurgy, electronics, machinery and other industrial sites of various scales.

    ● Commercial field: can be used in hotels, supermarkets, entertainment venues and other commercial buildings.

    ● Energy field: can be used in oil fields, mines, wind power, solar energy and other energy development and utilization scenarios.

    ● Transportation: It can be used as an emergency backup power supply for airports, stations, subways and other transportation places.

    Land Based Genset-JW-WP1240
    Gen-set specifications
    ModelJW-WP1240
    Standby Rating kVA/kWe1375/1100
    Prime Rating kVA/kWe1250/1000
    Voltage V400/230
    Frequency Hz50
    Power Factor0.8(lagging)
    No.of Phases3
    Fuel consumption@25%/50%/75%(Lh)75%(Lh)76.4/128.0/188.5
    Fuel consumption@100%/110%(Lh)263.1/292.4
    Sound@1m(dB · (A))Opens101;Silence ≤95
    Ambient temp(℃)-10~45
    Gen-set regulation classISO 8528-5G2
    Steady-state voltage devlation≤±2.5%
    Translent voltage devlation(100%sudden power decrease/increase)≤+25%;≤-20%
    Steady-state frequency band≤1.5%
    Transient frequency deviation from rated frequency
    (100%sudden power decrease/increase)
    ≤+12%;≤-10%
    Standard Features
    ◆ ECU◆DC24 Electric starter◆ JW-WHC9320CAN
    ◆Closed water-cooled◆ IP23◆H type insulation
    ◆Air filter◆Muffler◆ Circuit Breaker
    ◆Startingbatteries◆ with connective wires◆ Radiator
    ◆Oil Drain Valve◆Forklift Groove◆Shock Absorber
    ◆ColorWeichai blue (B,F)/beige canopy and black chassis (L)//white(C)
    ◆ PackagingWound film packing◆ PMG
    Options
    ◇Line Voltage380V/415VOLineVoltage 440V/480VOVoltage 6.3kV/10.5kV/13.8kV
    ◇ Single Voltage 220V/230VOAutomatic Transfer SwitchOAutomatic Parallel system
    ◇Engine Heater(water)OEngine Heater(air inlet)OAlternator heater
    External fuel tank(1000L/1500L)OAREP

    Typical Enclosed Genset Dimensions
    Genset ModelRated
    Power
    (kW)
    Length
    A(mm)
    Width
    B(mm)
    Height
    C(mm)
    Wet
    Weight*
    (kg)
    Standard
    Fuel tank
    Capacity
    (L)
    JW-WP1240/B7310004800220024508400/
    JW-WP1240/C73100020#standard Cube Container11700550
    *:Include coolantand oil.

    For detailed parameters, please consult me.

    We have cooperation with worldwide famous brands. For more specification,please contact us.
    Our Advantages
    12M33 900kw - 1200kw Diesel Engine Generator 1125kva - 1500kva Diesel Backup Generator
    12M33 900kw - 1200kw Diesel Engine Generator 1125kva - 1500kva Diesel Backup Generator
    12M33 900kw - 1200kw Diesel Engine Generator 1125kva - 1500kva Diesel Backup Generator
    12M33 900kw - 1200kw Diesel Engine Generator 1125kva - 1500kva Diesel Backup Generator
    12M33 900kw - 1200kw Diesel Engine Generator 1125kva - 1500kva Diesel Backup Generator
    Our OEM Partners
    are from different brands. With our customized solutions consistently delivering satisfaction ,we have won an esteemed reputation.
    FAQ
    1.Q: What is your MOQ of this item?
    A:1 Sets.
    2.Q: What is the lead time?
    A:7 working days after received the 30%T/T deposit.
    3.Q: Is it all right to make customer's own brand name?
    A:We can be your OEM manufacture with your authorization of brand.
    4.Q: Where is your Loading Port?
    A:Shanghai or others.
    5.Q: What are your payment terms?
    A:30% TT as deposit,70% TT before Shipment.
    6.Q: What is your company's available production capacity?
    A:100 Sets per month.
    7.Q:What's the warranty time of diesel generators?
    A:12 months or 1000 working hours, whichever comes first.

    Why choose Jiwei to buy a generator set:

    First, environmental protection and fuel saving: The advantages of gasoline generator include: optimized performance, ‌ flexible control, ‌ reduce NOx emission, ‌ high precision control, low vibration, low noise, low maintenance cost; ‌
    Second,Delivery Guarantee: 1.fast delivery time: 1-5 days after receiving the deposit, except for special models; 2.Jiwei Company has been established for 20 years, with rich pre-sales and after-sales service capabilities, strong supply capabilities, stable supplier resources and rich logistics resources;
    Third, strict quality inspection and testing procedures: 1.each generator set has to go through a comprehensive test program, including 50% load, 75% load, 100% load, 110% load and all control and alarm, safety shutdown function inspection and certification.
    Fourth, service guarantee 1.provide free technical support, drawing design; 2.warranty time :2 years or 2000 hours to the first arrival (delivery starts to calculate the time); 3.service response time: within 30 minutes (telephone response); 4.spare parts supply: common repair, maintenance spare parts supply (shipped in China); 5.warranty address: global warranty;
    Fifth,Customized Services: can be more customized products and LOGO according to your needs;
    Sixth,Confidentiality we can sign quality assurance and confidentiality agreements with you, so that our cooperation is more stable;
